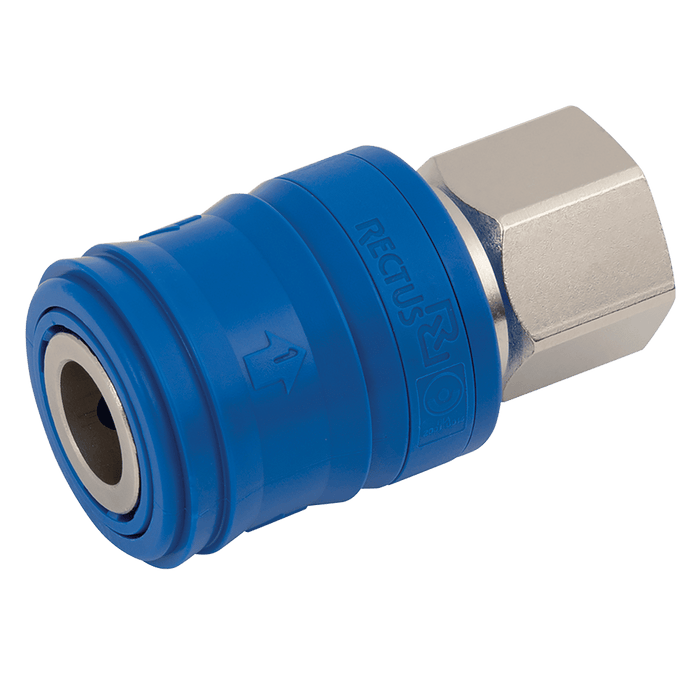

26KE Series Safety Coupling BSPP Female with a Self-Venting System. Use with 25SF Plugs. | G3/8" Female Thread | 26KEIW17MPN

SKU 26KEIW17MPN
Original price £61.92 - Original price £61.92
Original price
£61.92
£61.92 - £61.92
Current price £61.92

Safety coupling with a self-venting system.
Use with 25SF plugs.


Self-venting takes place during disconnection no risk of pressurised hoses being tossed around. When the sleeve is pulled back the plug is released yet remains locked in.


The coupling valve closes and the air is vented from the air line at the same time only then by operating the sleeve again can uncoupling take place safely.
The system fulfils the requirements of ISO 4414 increased safety standards in the work place.


Safety Note.
Reliable functioning can only be guaranteed in conjunction with original Parker Rectus 25SF series plugs made of steel.


Working Temperature: -20 deg C up to +60 deg C (NBR) depending on the medium.
For temperatures below -20 deg C and over +60 deg C and depending on the medium other seal variants (FKM EPDM FFKM) are available.


Working Pressure: 12 bar (maximum static working pressure with safety factor 4 to 1).
