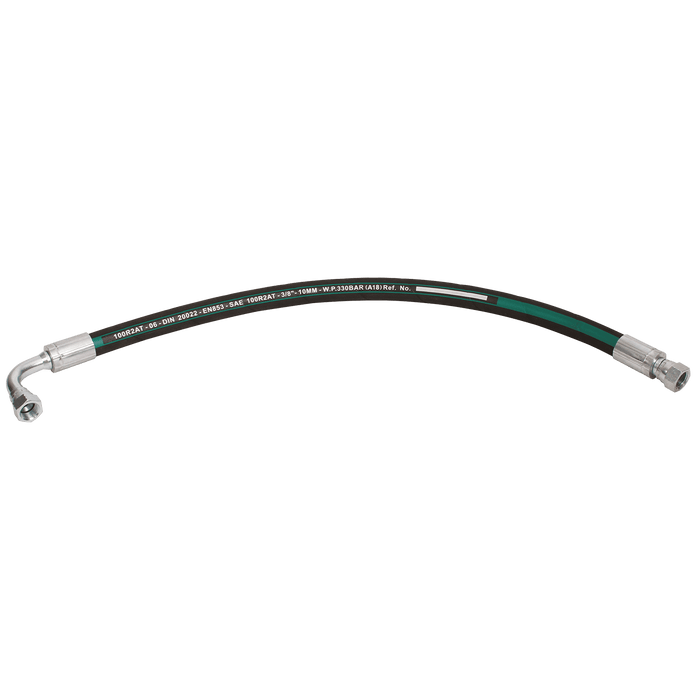

FT Pro - JF9012F12-2000 1.1/16" JIC Female X 30.2MM OD X 3/4" ID Hydraulic Hose Assembly

1.1/16" JIC Female x 30.2mm Outside Diameter x 3/4" Inside Diameter, Hydraulic Hose Assembly, Two Wire Braid EN853-2, 90° Swivel Female x Straight Swivel Female, Straight Hose End A x 90° Elbow Hose End B, 240mm Bend Radius, 2000mm Length, Burst Pressure 850 bar, Maximum Working Pressure 215 bar, FT Pro Construction: Symthetic rubber black tube, oil resistant: two high tensile steel wire braids reinforcement separated by sythentic rubber layer: sythetic rubber black outer coverr, oil, fuel, weather, ozone and abrasion resistant. Application: high pressure servie with petroleum bas hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, hot oil, grease, lubricants, crude and fuel oils, air and water. For air and gas application above 17 bar (250psi) the cover should be pin-pricked. MHSA accepted cover on request. A high quality range of flexible hydraulic assemblies with compact end fittings in BSPP 60° Cone and JIC 37° cone termination. Each assmebly is manufactured from hydrualic hose manufactured to DIN 20022 with two peice fittings. Couplings: permanent crimp-on.
