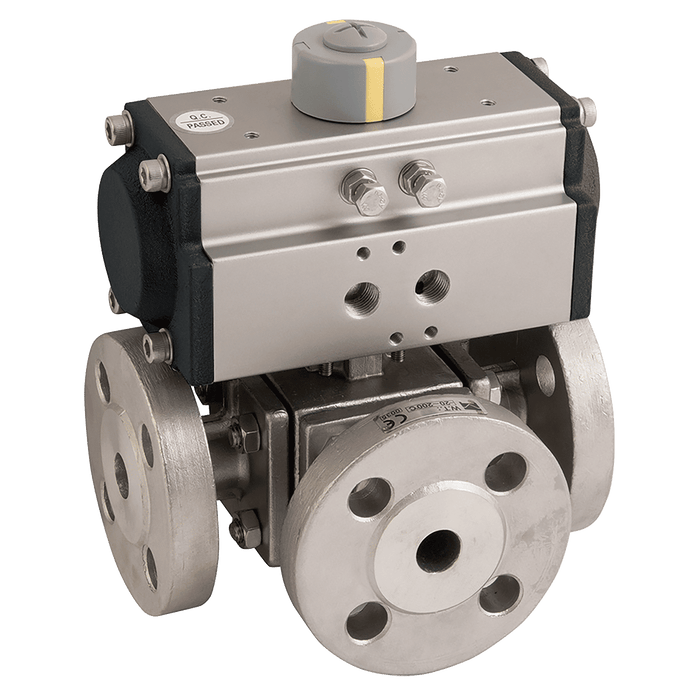

Haitima 4" ASA150 SS 3WL Ball Valve F/W Single Acting Actuator HSA 2059DL150 12
SKU HSA 2059DL150 12
Original price
£5,965.30
-
Original price
£5,965.30
Original price
£5,965.30
£5,965.30
-
£5,965.30
Current price
£5,965.30
5" ANSI150 Flange, 3 Way Ball Valve Fitted with a Pneumatic Actuator, L Port, Single Acting, Stainless Steel Valve Material, Valve Working Temperature -20°C to +200°C, Actuator Working Temperature -20°C to +90°C, Valve Maximum Working Pressure 19.6 bar, Haitima Features: Stainless steel 3 way L or T port direct mount ball valve. PN16 or ANSI150 flanged ends. Haitima aluminium pneumatic actuator. Sized based on 10 bar pilot air and wet non-abrasive duty at +90°C.
