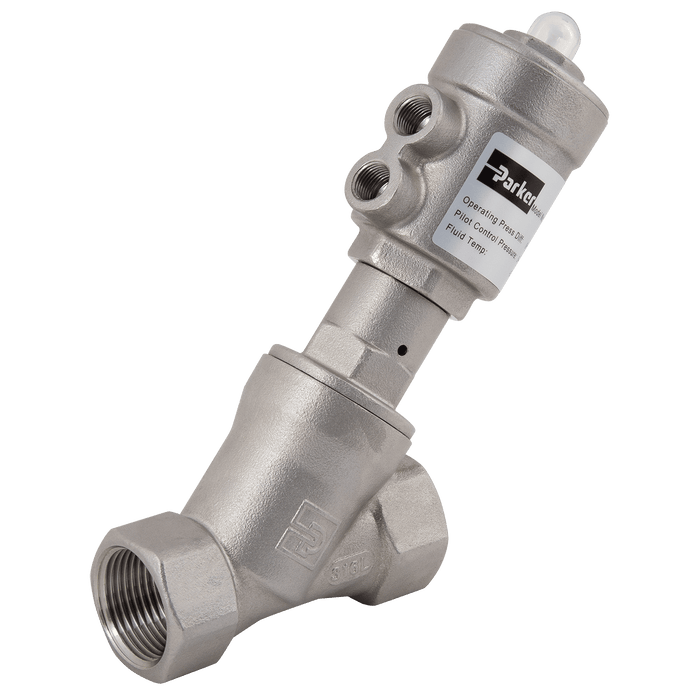

Parker 1/2 Comp Ht ASV N/C FOS 304SSACT316SSBOD PA15C1G4R032S

1/2" BSP Parallel Female, Angle Seat Valve, High Temperature, Flow Over Seat, 304 Stainless Steel Actuator, 316L Stainless Steel Body, Normally Closed, Working Temperature -10°C to +180°C, Maximum Working Pressure 16 bar, Parker An angle seat valve is actuated by a pneumatically driven piston and can handle slurry solutions with particles or corrosive solutions at high temperature up to +180°C and operating pressure up to 16 Bar. Construction: Stainless steel actuator housing for exceptional durability in steam and aggressive applications. 304 stainless steel actuator and 316L stainless steel body. Benefits: Compact design, high flow rates. Visual position indicator. Working pressures up to 16 Bar. Dampened closing anti-water hammer design (fluid under seat). Mountable in any position. Tight shut-off and Long Service Life. Valves meeting Pressure Equipment Directive 97/23/EC. Conform to 94/9/CE directive specific to non-electrical equipment for use within potentially explosive environments - Zones 1/21 and 2/22. Applications: Food and beverage processing. Water technology and treatment. Textile Industry. Cooling systems on injection moulding machines. Pharmaceutical/cosmetic industry. Chemical process technology. Refrigeration and cooling/heat exchangers. Sterilizers steam supply. Water applications including mining, cement/concrete systems, pulp and paper. General industrial applications of aggressive fluids. Industrial laundry equipment. Industrial air dryers.
